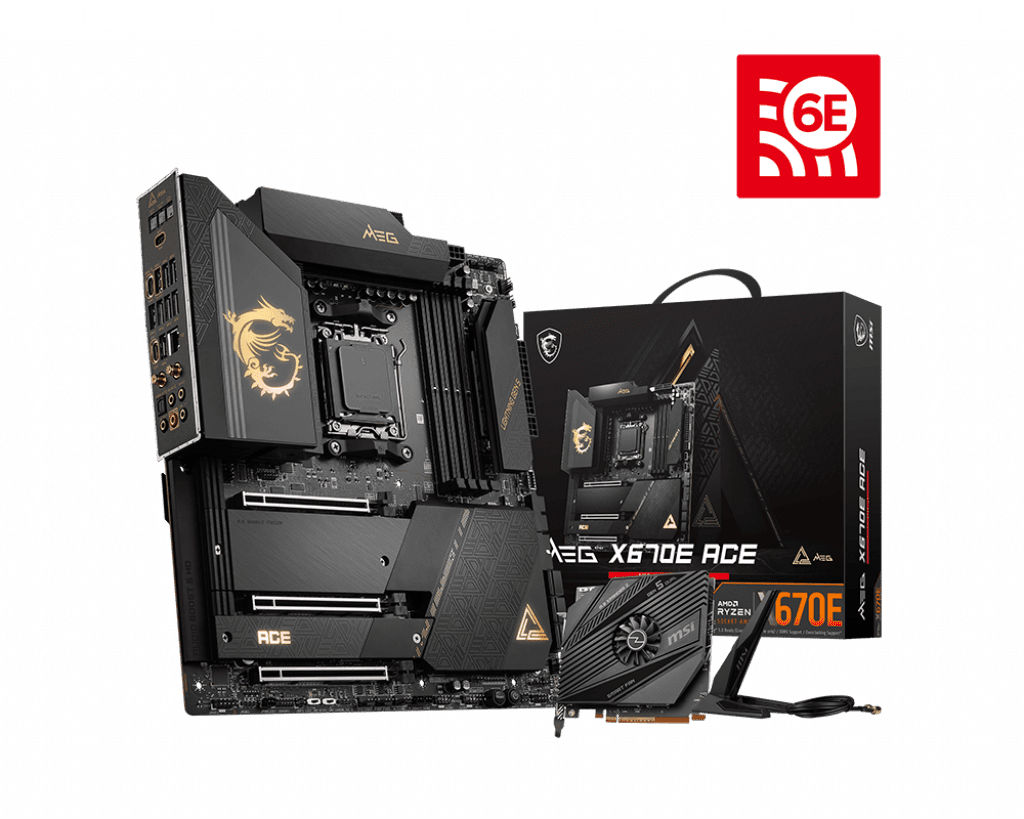

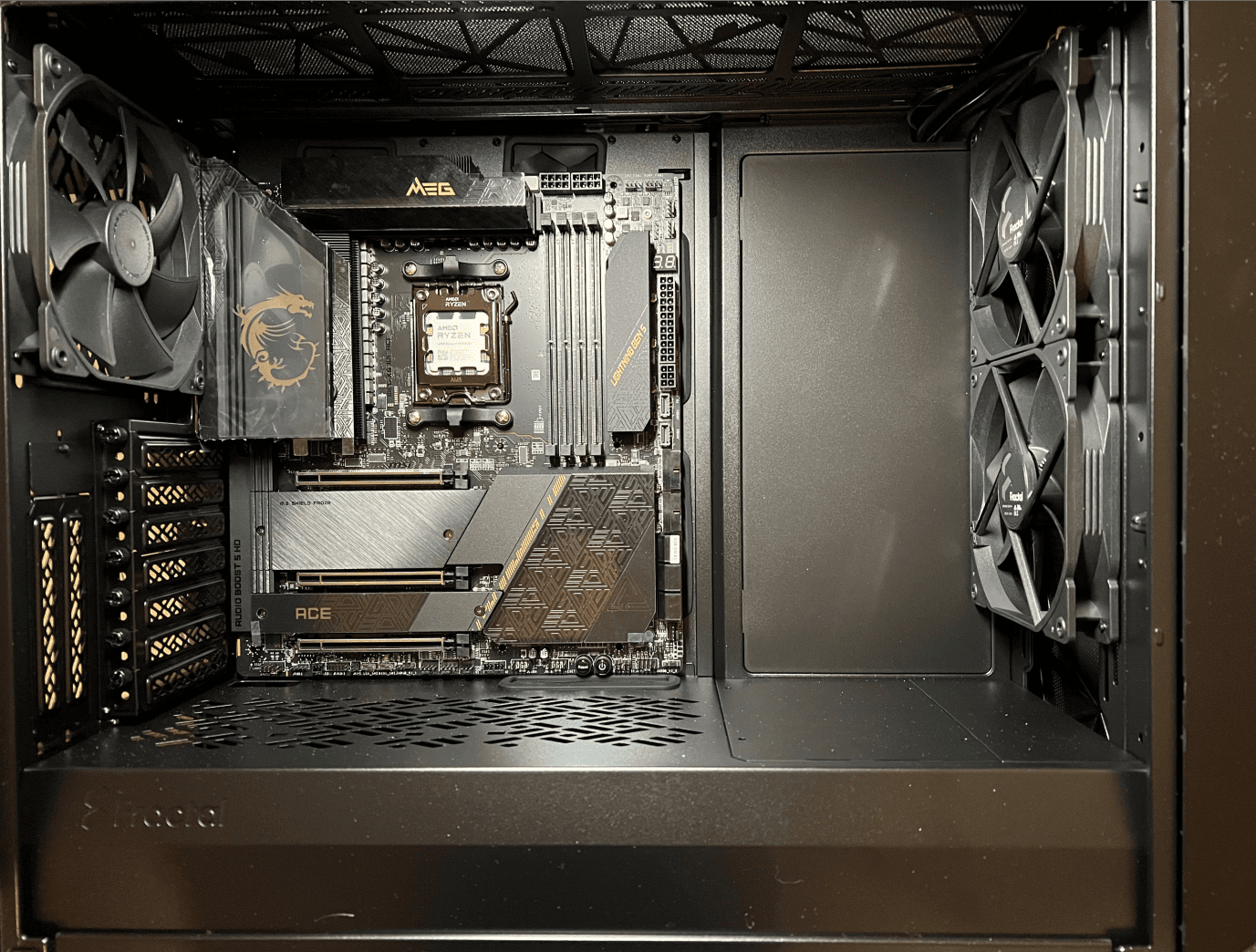

Sammelthread für das MSI MEG x670E ACE
Herstellerseite: MEG X670E ACE
Geizhals: https://geizhals.eu/msi-meg-x670e-ace-a2791720.html
Bios Übersicht: AM5 AGESA/UEFI/BIOS Info & Laberthread
Reviews:
MSI MEG X670E Ace auf der IFA gesichtet - Gold und Schwarz für AMDs AM5 - Hardware Journal
Im Rahmen der IFA zeigte MSI das brandneue MEG X670E Ace Mainboard für AMDs neue AM5 Prozessoren. Ausgestattet mit vier M.2 Steckplätzen und ...
MSI MEG X670E ACE Review – The Best X670E Motherboard to Buy? - GeekaWhat
MSI's flagship board on the AM5 platform, the MEG X670E ACE Ryzen 7000 motherboard, is crammed with tonnes of features and designed for high performance!
geekawhat.com
MSI MEG X670E ACE Review
Featuring a 22+2+1 VRM setup using 90 A power stages, DDR5 support, PCIe Gen 5, six M.2 sockets and loads of high-speed USB ports, the MSI MEG X670E ACE is the premium motherboard everyone is talking about. Follow along as we take a deep dive and check out all the features this motherboard has...
Besonderheiten:
- Unterstützt AMD Ryzen™ 7000 Serie Desktop Prozessoren
- Unterstützt DDR5-Speicher
- Extreme Power Design: 22+2+1 Phasen Power Design mit 90A Power Stage und dualen CPU Power Anschlüssen sind bereit, die maximale Leistung zu entfesseln.
- Maximal 6 x M.2-Anschlüsse: Die integrierte und exklusive M.2 XPANDER-Z GEN5 DUAL PCI-Express-Karte bietet insgesamt sechs M.2-Anschlüsse für maximale Speicherleistung. Das doppelseitige Shield Frozr-Design schützt M.2-SSDs und verhindert gleichzeitig Throttling, so dass sie schneller laufen.
- Hervorragende Kühllösung: Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK Wärmeleitpads, doppelseitiges M.2 Shield Frozr und Frozr AI Software sorgen für extreme Leistung bei niedriger Temperatur.
- 10G Super LAN mit der neuesten Wi-Fi 6E-Lösung: Integriertes 10Gbps-LAN mit der neuesten Wi-Fi 6E-Lösung, die das 6GHz-Spektrum unterstützt und das beste Online-Gaming-Erlebnis bietet.
- Blitzschnelles Spielerlebnis: PCIe 5.0-Steckplätze, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G mit 60W USB Power Delivery.
- DIY-freundliches Design: Patentiertes magnetisches M.2 Shield Frozr, schraubenloses M.2 Shield Frozr, EZ M.2 Clips, Smart Button, vorinstalliertes I/O Shield, Stahlpanzer
- 8-Lagen PCB mit 2oz verdicktem Kupfer: Sorgt für höhere Leistung und lang anhaltende Systemstabilität ohne Kompromisse.
- Audio Boost 5 HD: Ultimative Audiolösung mit dem neuesten Premium-Audioprozessor ALC4082 in Kombination mit ESS-Audio-DAC und -Verstärker für ein atemberaubendes Erlebnis
Spezifikationen ACE:
SOCKET: AM5
CPU (MAX SUPPORT): Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
CHIPSET: AMD® X670E Chipset
DDR5 MEMORY:
4x DDR5, Maximum Memory Capacity 128GB
MEMORY CHANNEL: DualDIMM SLOTS: 2/4
ONBOARD GRAPHICS:
1x Type-C Display port
Supports DisplayPort 1.4 with HBR3, maximale Auflösung von 4K 120Hz*
*Nur bei Prozessoren mit integrierter Grafik verfügbar. Die Grafikspezifikationen können je nach installierter CPU variieren*
EXPANSION SLOT
3x PCI-E x16 slot
Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
STORAGE
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
6x SATA 6G port
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 unterstützen die RAID-Funktion nicht.
LAN
Marvell® AQC113-B1-C 10Gbps LAN
USB 4x USB 2.0 ports (Front)
4x USB 3.2 Gen1 Type A ports (Front)
8x USB 3.2 Gen2 Type A ports (Rear)
1x USB 3.2 Gen2 Type C ports (Rear)
1x USB 3.2 Gen2 Type C ports (Front)
2x USB 3.2 Gen2x2 Type C ports (Rear)
1x USB 3.2 Gen2x2 Type C ports (Front)
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB 3.2 Gen 2x2 Type-C ports
1x USB 3.2 Gen 2x2 Type C ports
V-check point
LED FEATURE
1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED
BACK PANEL:
Clear CMOS Button
Flash BIOS Button
USB 3.2 Gen 2 10Gbps (Type-A)
10G Super LAN
Wi-Fi / Bluetooth
HD Audio Connectors
Smart Button
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF-Out
OPERATING SYSTEM Support für Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION E-ATX 277mm x 304.8mm
Datashett: https://storage-asset.msi.com/datasheet/mb/global/MEG-X670E-ACE.pdf
CPU (MAX SUPPORT): Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
CHIPSET: AMD® X670E Chipset
DDR5 MEMORY:
4x DDR5, Maximum Memory Capacity 128GB
MEMORY CHANNEL: DualDIMM SLOTS: 2/4
ONBOARD GRAPHICS:
1x Type-C Display port
Supports DisplayPort 1.4 with HBR3, maximale Auflösung von 4K 120Hz*
*Nur bei Prozessoren mit integrierter Grafik verfügbar. Die Grafikspezifikationen können je nach installierter CPU variieren*
EXPANSION SLOT
3x PCI-E x16 slot
Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
STORAGE
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
6x SATA 6G port
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 unterstützen die RAID-Funktion nicht.
LAN
Marvell® AQC113-B1-C 10Gbps LAN
USB 4x USB 2.0 ports (Front)
4x USB 3.2 Gen1 Type A ports (Front)
8x USB 3.2 Gen2 Type A ports (Rear)
1x USB 3.2 Gen2 Type C ports (Rear)
1x USB 3.2 Gen2 Type C ports (Front)
2x USB 3.2 Gen2x2 Type C ports (Rear)
1x USB 3.2 Gen2x2 Type C ports (Front)
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB 3.2 Gen 2x2 Type-C ports
1x USB 3.2 Gen 2x2 Type C ports
V-check point
LED FEATURE
1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED
BACK PANEL:
Clear CMOS Button
Flash BIOS Button
USB 3.2 Gen 2 10Gbps (Type-A)
10G Super LAN
Wi-Fi / Bluetooth
HD Audio Connectors
Smart Button
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF-Out
OPERATING SYSTEM Support für Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION E-ATX 277mm x 304.8mm
Datashett: https://storage-asset.msi.com/datasheet/mb/global/MEG-X670E-ACE.pdf
MSI Support bei hwluxx.
