[Sammelthread] ASUS ROG Strix X670E-E/-F/-A/-I Gaming WIFI (AM5)

Neues Bild.png

Sammelthread für die ASUS ROG Strix X670E Gaming WIFI Serie
In dem Thread geht es nur um die Strix x670E Serie. Andere Board Fragen haben hier nichts verloren, danke.




Herstellerseite: STRIX X670E-E / STRIX X670E-F / STRIX X670E-A / STRIX X670E-I

Support/Treiber/Bios (Hersteller): STRIX X670E-E / STRIX X670E-F / STRIX X670E-A / STRIX X670E-I

Support/Treiber/Bios (Alternative): STRIX X670E-E / STRIX X670E-F / STRIX X670E-A


Geizhals: STRIX X670E-E / STRIX X670E-F / STRIX X670E-A /
STRIX X670E-I

Geizhals Vergleich: Strix X670E-E/F/A/I

Bios Übersicht: AM5 AGESA/UEFI/BIOS Info & Laberthread

AM5 Laberthread: https://www.hardwareluxx.de/community/threads/amd-am5-lga1718-mainboard-info-laberthread.1311067/

ECO Mode Guide: https://www.overclock3d.net/reviews/cpu_mainboard/amd_eco_mode_guide_for_am5/1


Reviews:

Besonderheiten:
  • Optimiertes Kühlungsdesign: Massive VRM-Kühlkörper plus integrierte Aluminium-E/A-Abdeckung, hochleitfähiges Wärmeleitpad, L-förmige Heatpipe, M.2 Combo-Kühlkörper und M.2 Backplate für den PCIe® 5.0 M.2_1 Steckplatz, drei Onboard-M.2-Kühlkörper sowie ein massiver M.2-Kühlkörper als Zubehör
  • Übertaktungstechnologien: Dynamic OC Switcher, Ryzen Core Flex, Asynchroner Takt und PBO-Verbesserung
  • Hochleistungsnetzwerke: Onboard WiFi 6E, Intel® 2,5 Gb Ethernet und ASUS LANGuard
  • Branchenführendes Audio: ROG SupremeFX ALC4080 mit Savitech SV3H712 Verstärker, zusammen mit DTS® Sound Unbound und Sonic Studio III
  • Unübertroffene Personalisierung: ASUS-exklusive Aura Sync RGB-Beleuchtung, einschließlich eines RGB-Headers und drei adressierbaren Gen 2 RGB-Headern
  • DIY-freundliches Design: Einschalttaste, vormontiertes I/O Shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-Code, Q-LED, BIOS FlashBack™, Clr CMOS Button, FlexKey, SafeSlot und SafeDIMM
  • Intelligente Steuerung: ASUS-exklusive Tools wie AI Cooling II, Two-Way AI Noise-Cancelation und AI Networking für eine einfache Konfiguration
  • Renommierte Software: 60-Tage-Testversion von AIDA64 Extreme und intuitives UEFI BIOS-Dashboard im Lieferumfang enthalten

Spezifikationen ROG STRIX X670E-E GAMING WIFI:

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed),
and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function

Graphics​

1 x DisplayPort**
1 x HDMI® port***
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
AMD X670 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))

AMD X670 Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.
**The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications

USB​

Rear USB (Total 13 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x
USB Type-C®)

Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4080
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the
front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB
Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Alteration Mode Switch
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Massive M.2 Heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 MbFlash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Massive M.2 Heatsink
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG Graphics card holder
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
Documentation
1 x User guide

Operating System​

Windows® 11 64-bit, Windows 10 64-bit

Form Factor​

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-F GAMING WIFI:

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function

Graphics​

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports max. 4K@60Hz as specified in HDMI 2.1.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD X670 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries.

USB​

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®)
2 x USB 2.0 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C®)
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
Documentation
1 x User guide

Operating System​

Windows® 10 64-bit, Windows® 11 64-bit

Form Factor​

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-A GAMING WIFI:

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics​

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0/4.0/3.0 x16 slot

AMD X670 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB​

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional
2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch packages for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate

Documentation
1 x User guide

Operating System​

Windows® 11, Windows® 10 64-bit

Form Factor​

ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-I GAMING WIFI:

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics​

1 x HDMI® port*
2 x USB4® ports support USB Type-C® display
outputs**
*Supports 4K@60Hz as specified in HDMI
2.1.
** VGA resolution support depends on
processors' or graphic cards' resolution.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot(s)

Storage​

Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.

USB​

Rear USB (Total 10 ports)
2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 xUSB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II C (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**

Audio​

ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port & USB Type-C® port with indepent power solution
- Dedicated audio PCB layers
*All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE

Back Panel I/O Ports​

2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1
port supports ROG STRIX HIVE)
3 x USB 2.0 port(s) (3 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2 connector (support(s) USB
Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x RTC Battery header
1 x Thermal Sensor header
1 x 2 pin Power_BTN header
2 x USB Type-C® connectors to Install ROG
FPS-II card*
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports

Special Features​

Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
- M.2 Chipset Fan
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x EZ mode PBO button
1 x FlexKey button
1 x BIOS FlashBack™ button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide

Operating System​

Windows® 11, Windows® 10 64-bit

Form Factor​

Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)

FAQ:

Q: Wie Windows 11 22H2 installieren wenn LAN nicht erkannt wird?
A: Siehe Lösung von Asus.

Q: Im Geräte-Manger ist ein unbekanntes Gerät?
A: es handelt sich um den "Thunderbolt" (AMD I2C). Treiber

Q: Kann man das Memory Training abschalten?
A: ja in dem man in BIOS "Context Restore" auf enable stellt. Wichtig bei Context Restore, erst einschalten wenn das Ram Training 1x gemacht wurde

Tipps:
Empfohlene zusatzeinstellungen für RAM ab 6000Mhz:
1x Ram Training machen lassen, danach Context Restore aktivieren und Memory Power Down (wird automatisch aktiviert ab Bios 1004). Medium Load Boostit sollte man auch aktivieren was die Stabilität erhöht.


Sollten Änderungen oder Ergänzungen gewünscht sein bitte Informiert mich.


Anhänge

  • Strix-E.jpg
    28,7 KB · Aufrufe: 465
  • Strix-F.jpg
    135,8 KB · Aufrufe: 386
  • Strix-A.jpg
    88,9 KB · Aufrufe: 537
  • Strix-A.png
    128,7 KB · Aufrufe: 328
  • Strix-E.png
    149,1 KB · Aufrufe: 267
  • Strix-F.png
    124,8 KB · Aufrufe: 274
  • Screenshot 2022-11-07 092727.png
    Screenshot 2022-11-07 092727.png
    152,3 KB · Aufrufe: 238
  • Screenshot 2022-11-07 095054.png
    Screenshot 2022-11-07 095054.png
    83,4 KB · Aufrufe: 220
  • Neues Bild.png
    Neues Bild.png
    511,8 KB · Aufrufe: 510
Zuletzt bearbeitet:
Das hier ist so ähnlich.
@Powerplay lässt Du Dir das patentieren? Ich finde Deine Arbeit großartig. Herzlichen Dank dafür!
VG
Heinz

Zuletzt bearbeitet:
Wenn Du diese Anzeige nicht sehen willst, registriere Dich und/oder logge Dich ein.
Warum soll ich mir das Patentieren lassen :ROFLMAO:
Das kann jeder der ein wenig mit Fusion 360 rumhantiert selbst machen und Drucken.
Vorallem habe ich mit Fusion 360 auch nicht soooo den Plan

Sei es wie es sei - auf jeden Fall eine coole Idee, denn die im Handel erhältlichen sehen alle übelst :poop: aus.

Zuletzt bearbeitet:
Weißt du was ein Patent kostet ? :geek:

Und vorallem da gibt es nichts zu patentieren

Sei es wie es sei - auf jeden Fall eine coole Idee, denn im Handel erhältlichen sehen alle übelst :poop: aus.
Ja das Stimmt. Auch die Downloadbaren die ich gefunden habe sahen hässlich aus.
Ich habe halt nen 80er lüfter genommen weil es da endloss viele gibt und die auch leise sind.
Dann wollte ich das die Luft über den RAM strömen muss und ansehnlich sollte es auch noch irgendwie sein :fresse2:

EDIT: Artillery Genius Pro 3D Drucker gibt es für Low und dazu dann mehere Videos über Fusion 360 ansehen und dann kannste dir das alles selber Zeichnen und Drucken.
Vor ca nem Monat wusste ich bei Fusion 360 garnichts... 😆

Ich spiele gerade mit FanControl herum, was mit dem Strix Board echt gut läuft. Also ich vorher ein MSI Board hatte, lief FanControl nicht so sauber. Echt eine tolle Software und das für lau.

Ich spiele gerade mit FanControl herum, was mit dem Strix Board echt gut läuft. Also ich vorher ein MSI Board hatte, lief FanControl nicht so sauber. Echt eine tolle Software und das für lau.
Steuer über das BIOS auch den RAM Lüfter funktioniert Prima.

Das es über das Bios auch geht, darum ging es ja nicht. Das weiß ich selbst auch. Mit FanControl gehts halt besser finde ich.

Die Optionen im UEFI sind bei ASUS mMn sogar noch stärker eingeschränkt als ich das von einem 5 Jahre alten MSI Mainboard kenne. Trotzdem regel ich es darüber, es geht mir dabei einfach grundsätzlich darum, dass es dann "sicher" ist. Fan Control kann abstürzen.

Klar kann man das auch einfach kombinieren. Man erstellt im UEFI eine grundlegende Lüfterkonfiguration von der man weiß sie funktioniert und macht das finetuning dann mit FanControl. ^^

Zuletzt bearbeitet:

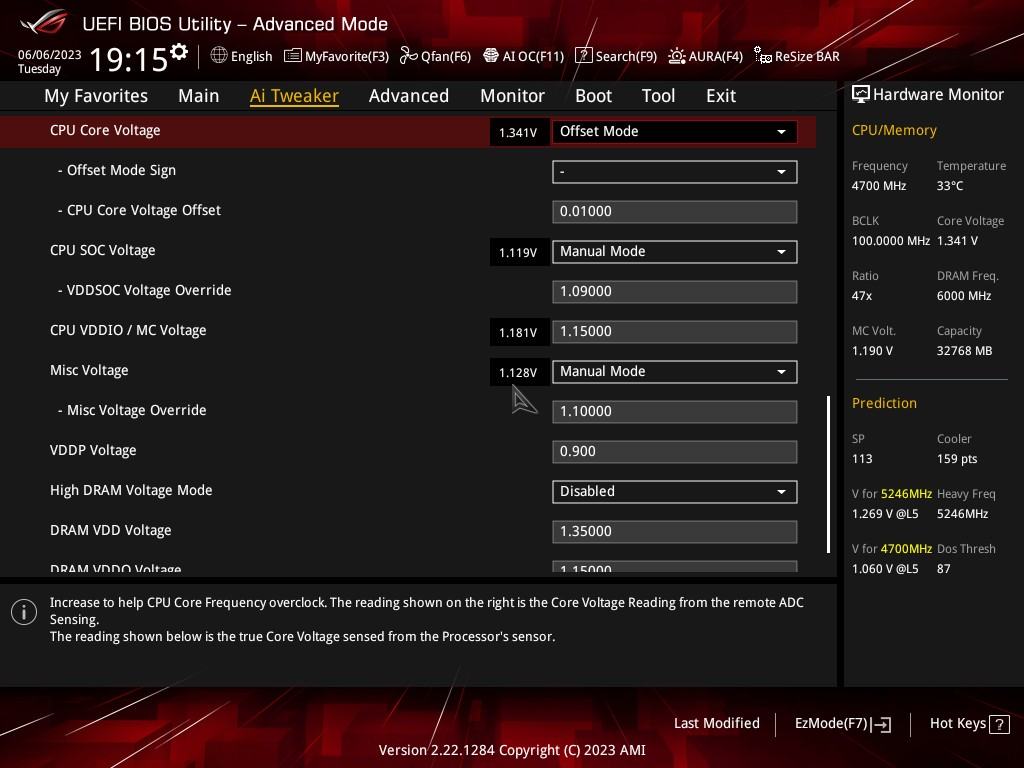

Was für Spannung verändert ihr noch am Board?
Das der CPU ordentlich läuft, ein bissel Strom spart und gute Temperaturen hat.


1: CPU VDDIO / MC Voltage ist gemeint VDDIO/MC
2: CPU Soc Voltage ist vSoc, da habe ich 1,24 V
3: CPU Core Voltage habe ich Offset 0,01 V

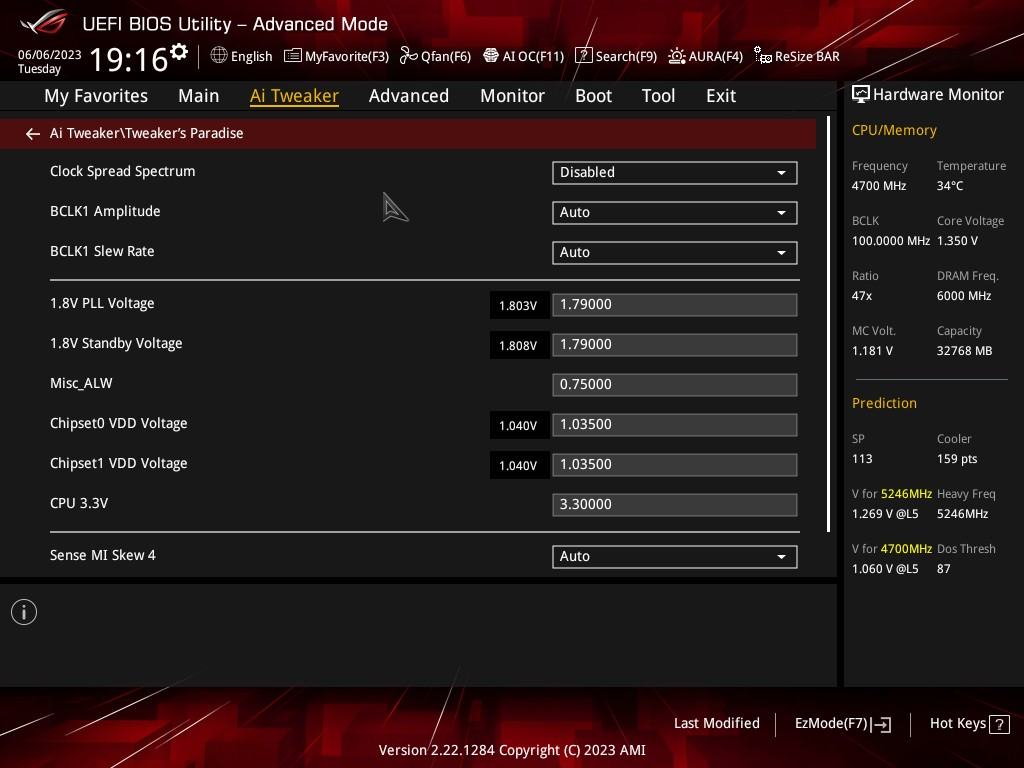

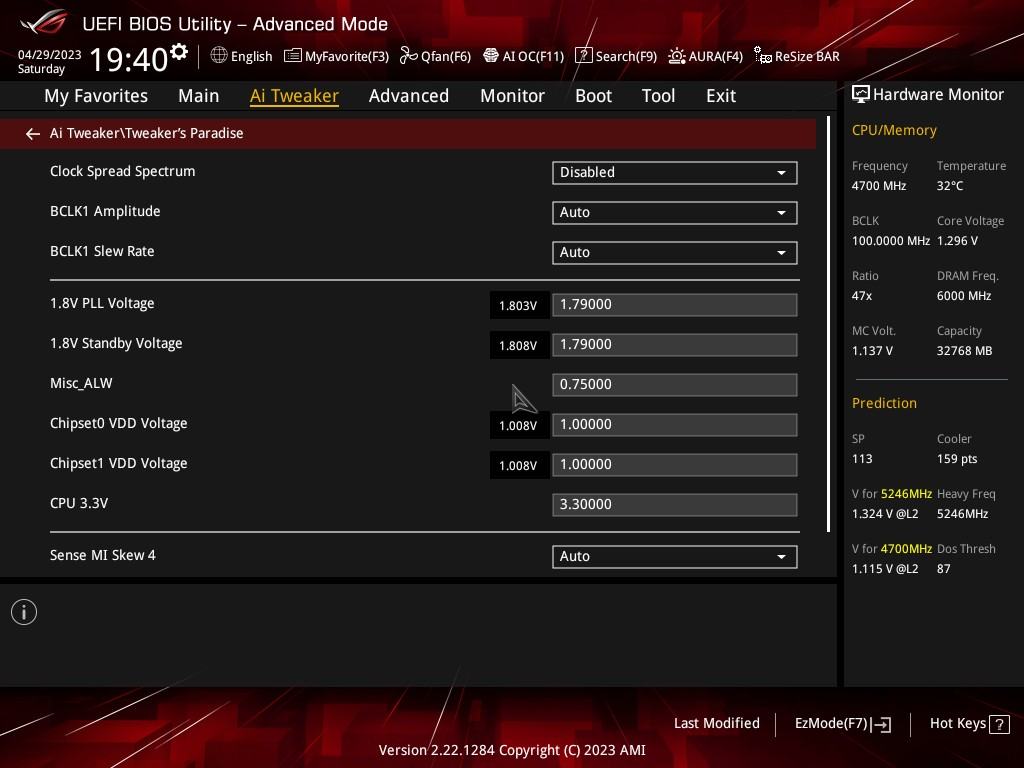

4: Legt ihr den Chipsatz0 / 1 VDD Voltage auf fast?
Die beiden Werte sind für den RAM, wenn ich da richtig liege.

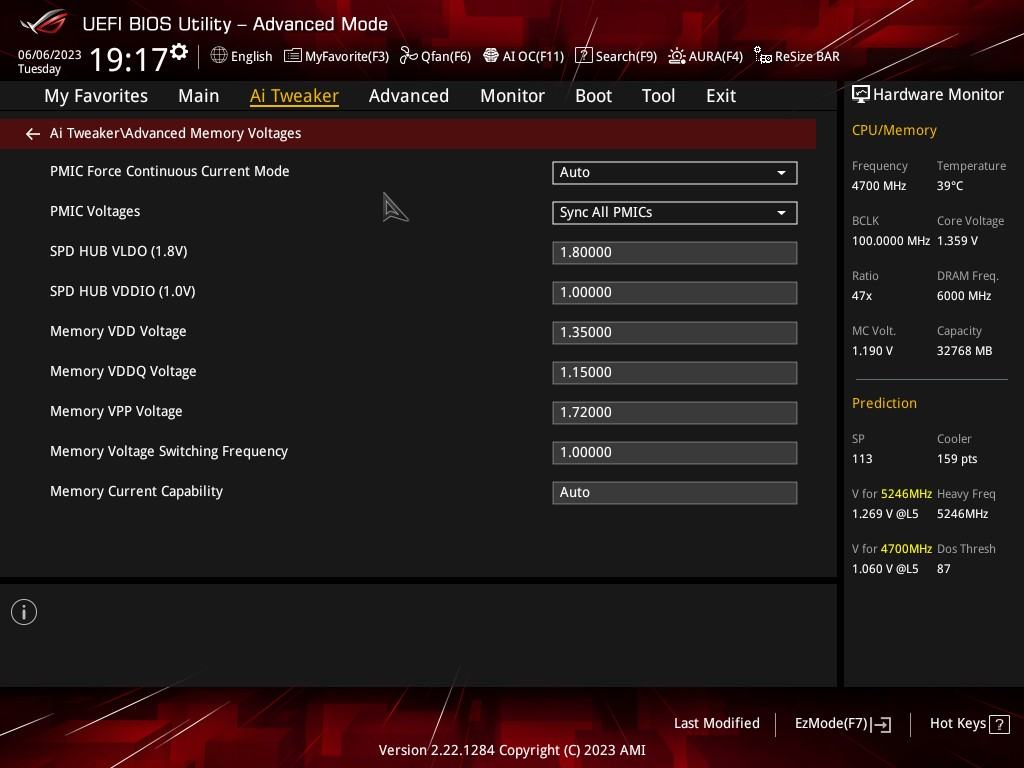

5: DRAM VDD Voltage habe ich 1,35 V
6: DRAM VDDQ Voltage 1,33 V


Gruß Enrico

Zuletzt bearbeitet:
Nope, hat sich mittlerweile schon wieder geändert 🙈

Falls Bedarf kann ich heute Abend aktuelle Screenshots posten

Ich hatte schon gern Interesse! :-)
Wo die Reise hin gehn kann.

Gruß Enrico

Kein Ding... aber stumpf alles übernehmen wird u.U. nicht funktionieren.

Langsam rantasten und immer wieder testen ob dein System überhaupt mit meinen Werten bootet und stabil ist 😉

Nee, alle Werte kann man nicht übernehmen! Da wird es dann schwarz bleiben. :-)
Mir geht es, welche Werte ihr verändert im Bios.
Das bestimmt Werte muss man sich dann ran testen. Man weiß wo man selber erst ist und wie weit es gehen könnte. 😉
Das ihr auch die 1.8 Volt oder 1.0 Volt auch fest macht und nicht auf Auto steht. Oder die Ohm Sachen für den RAM fest macht.

Kannst Bilder von Bios und hwinfo machen?

Zuletzt bearbeitet:
@LuxSkywalker Danke für die Strom Wehrte!

https://www.hardwareluxx.de/communi...gaming-wifi-am5.1324266/page-45#post-29888782
Da hast du eine Datei angehangen, mit dein Bios! Hast du die selber erstellt oder gibt es im Bios ein Testenbefehl? Der dann eine Textdatei erstellt.

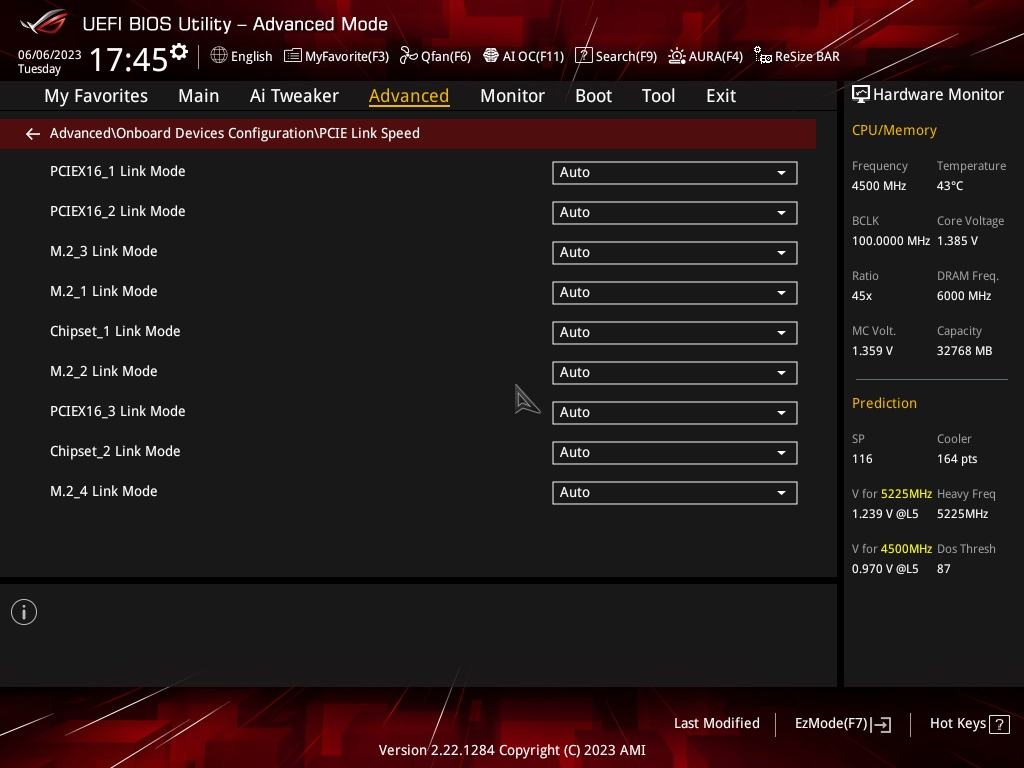

Habe noch ein paar fragen zu Bios Einstellung!
USB power delivery in Soft Off state (S5) - Enabled Er gibt noch Strom raus, wenn der PC AUS ist?
Kann man ihr den Gen 4 einstellen?
Grafikkarte habe ich ein AMD 7900XTX - müsste ich bei PICEX16_1 Linke Mode Gen4 einstellen
Samsung M.2 SSD 990 pro auf M.2_1 und M.2_2 Link Mode - müsste da dann auch Gen4 hin
Die anderen sind nicht belegt. Das er das besser zuordnen kann.

Im Bios unter AMD CBS steht was von IOMMU und ECC?
ECC ist damit gemeint, RAM mit ECC für Fehlerkorrektur
IOMMU mit Virtualisierung zu tun?
Kann man das beides Auschalten?

Im Bios unter Boot steht was von Fast Boot! Bedeutete das schnelles Booten? das steht auf Enabled

Zuletzt bearbeitet:
https://www.hardwareluxx.de/communi...gaming-wifi-am5.1324266/page-45#post-29888782
Da hast du eine Datei angehangen, mit dein Bios! Hast du die selber erstellt oder gibt es im Bios ein Testenbefehl? Der dann eine Textdatei erstellt.


Habe noch ein paar fragen zu Bios Einstellung!
USB power delivery in Soft Off state (S5) - Enabled Er gibt noch Strom raus, wenn der PC AUS ist?
Anhang anzeigen 893367
Kann man ihr den Gen 4 einstellen?
Grafikkarte habe ich ein AMD 7900XTX - müsste ich bei PICEX16_1 Linke Mode Gen4 einstellen
Samsung M.2 SSD 990 pro auf M.2_1 und M.2_2 Link Mode - müsste da dann auch Gen4 hin
Die anderen sind nicht belegt. Das er das besser zuordnen kann.

Im Bios unter AMD CBS steht was von IOMMU und ECC?
ECC ist damit gemeint, RAM mit ECC für Fehlerkorrektur
IOMMU mit Virtualisierung zu tun?
Kann man das beides Auschalten?

Im Bios unter Boot steht was von Fast Boot! Bedeutete das schnelles Booten? das steht auf Enabled
da wo du dein BIOS Profil speicherst kannst du auch die BIOS Settings auf den Stick speichern - entweder ALT+F2 oder Strg+F2, bin nicht ganz sicher. Steht aber unten im BIOS :-)

die PCIe Link Speeds kannst du da einstellen - aber würde ich nur anfassen falls es mit verbauter Hardware Probleme gibt

IOMMU hab ich aus - von ECC hab ich die Finger gelassen, DDR5 bringt ein ECC "light" ab Werk mit. Bin nicht sicher ob ich das damit beeinflusse

Werde ich mal unter BIOS Profil schauen!
PCIe Link Speeds lasse ich dann auf AUTO
IOMMU ist Disabled
ECC ist AUTO

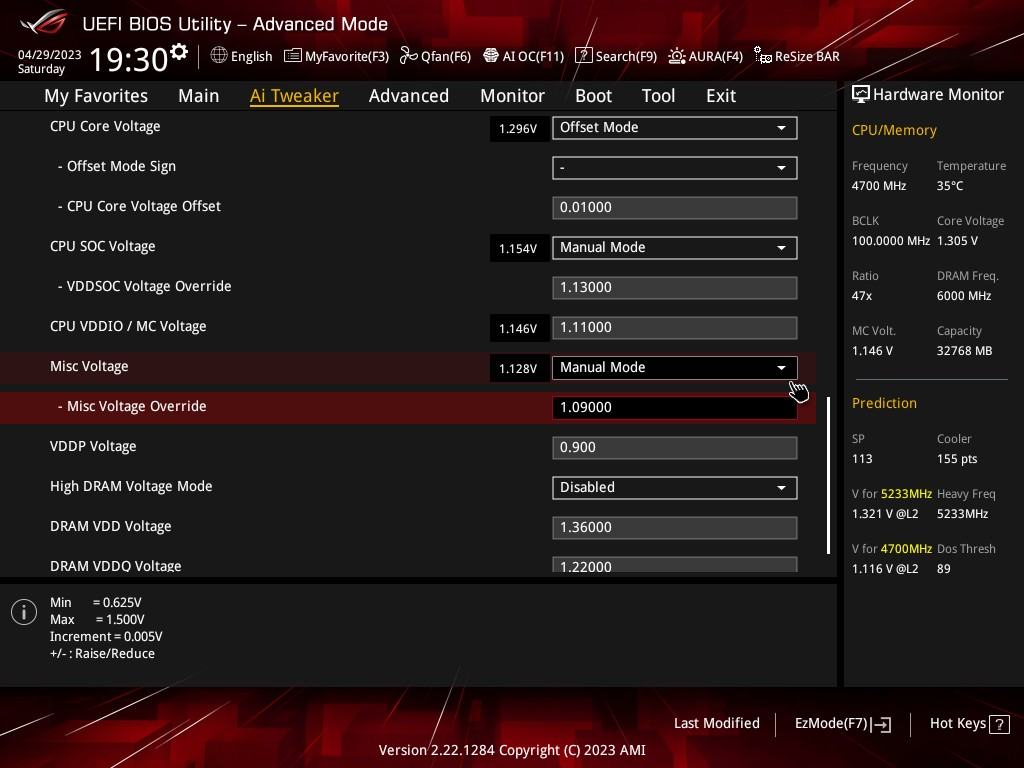

Im Bios unter AI Tweaker ist Misc Voltage.
Ist das das gleiche in HWimfo unter CPU VDD_Misc Spannung (SVI3 TFN) oder VMISC?

Wo ich den Wehrt im Bios Manuel machte Misc Voltage 1.12500v. Ist CPU VDD_Misc Spannung (SVI3 TFN) von 1.088 auf 1.100 Volt gegangen.

Zuletzt bearbeitet:
...
Wo ich den Wehrt im Bios Manuel machte Misc Voltage 1.12500v. Ist CPU VDD_Misc Spannung (SVI3 TFN) von 1.088 auf 1.100 Volt gegangen.
unsere "billigen" Boards haben ein unzuverlässige Spannungsmessung

Die Sense vs Socket Sense - unsere Strix haben nur Socket Sense, ab HERO aufwärts dann Die Sense soweit ich informiert bin



Entweder ein Board um eine Klasse besser kaufen oder du musst damit Leben 😉

btw. die Spannung welche im BIOS eingestellt ist, ist diejenige welche korrekt ist - ausgelesen mit den ganzen Software Tools ist bei Socket Sense eher "pi x daumen"

Danke für die Info!
Desto teurer das Board, haben die bessere Auslesesensoren. :-)

Mit den speichern unter Bios Profil auf den Stick. Speichert er nur das BIOS, ein mal nur F2 Taste oder Strg + F2 Taste.
Macht da kein .txt Datei.

...
Mit den speichern unter Bios Profil auf den Stick. Speichert er nur das BIOS, ein mal nur F2 Taste oder Strg + F2 Taste.
Macht da kein .txt Datei.
doch tut er - stelle sicher das der Stick FAT32 formatiert ist



dann manuell auf den Stick navigieren - am besten in einen vorher erstellten Unterordner



dann Strg+F2 - einen passenden Name eingeben und er speichert das [gewählterName]_setting.txt File auf dem Stick




:d

Danke!
Werde ich das noch mal versuchen, mit einen USB 2.0 Stick in FAT32.

@LuxSkywalker
Hat funktioniert mit dem Speichern des Bios als .txt Datei!
Das sind meine Einstellungen erst mal im Bios und der Curve Optimizer ist noch nicht fertig.


Anhänge

  • COmitBIOS_setting.txt
    27,5 KB · Aufrufe: 17
Zuletzt bearbeitet:
Hallo,


Kommen die Werde im roten Rahmen ihr her?

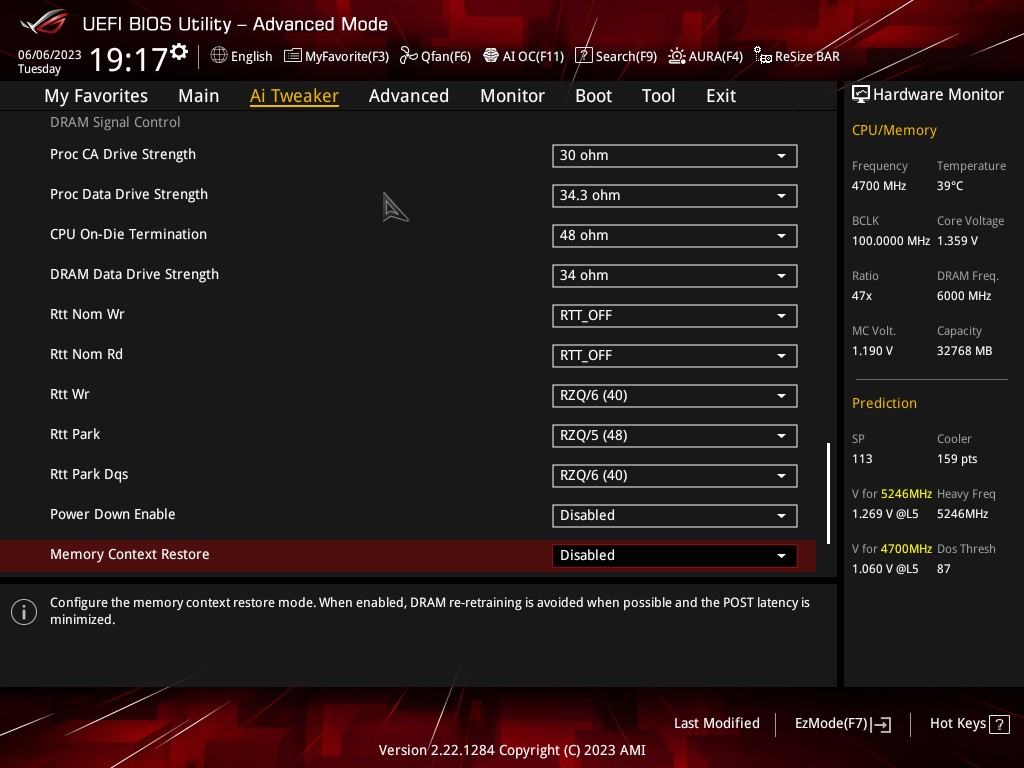

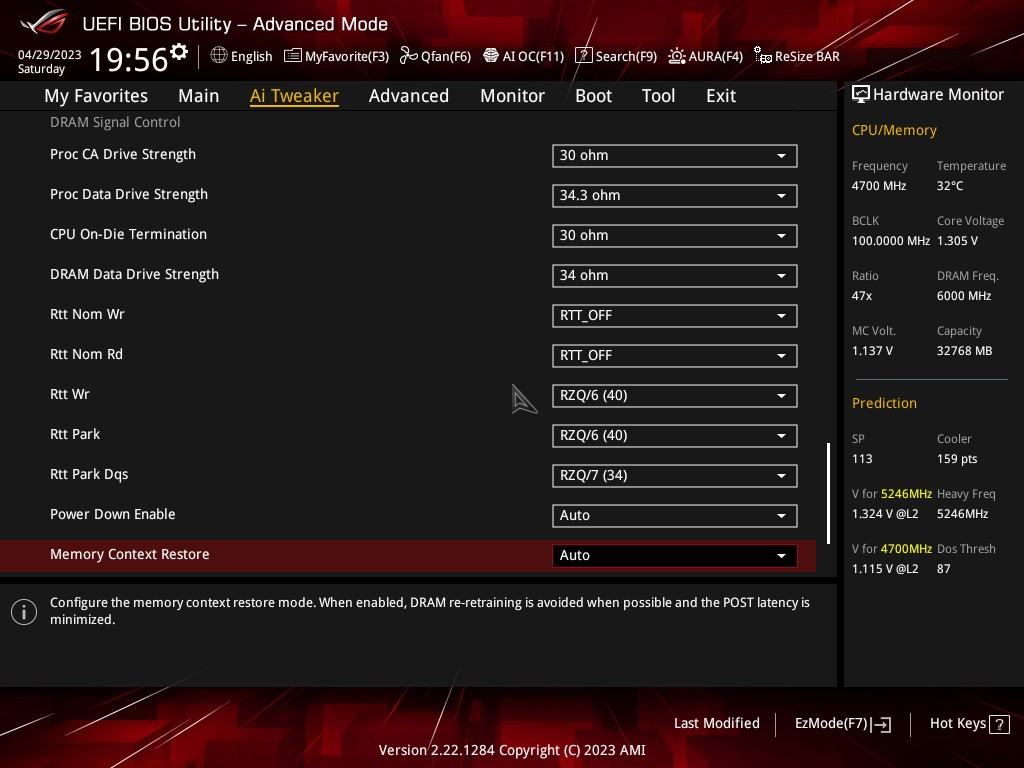

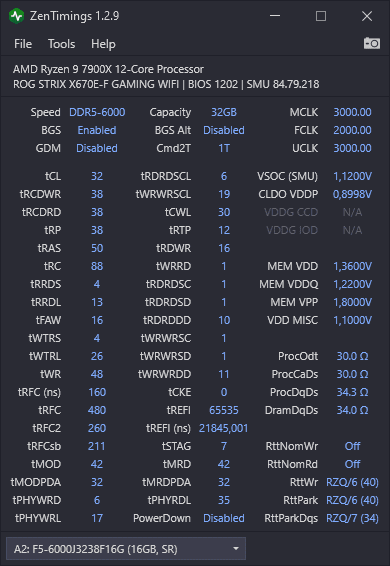

Unter DRAM Timing Control

Proc CA Drive Strength [Auto] 30 Ohm
Proc Data Drive Strength [Auto] 34,3 Ohm
CPU On-Die Termination [Auto] 48 Ohm
DRAM Data Drive Strength [Auto] 48 Ohm
Rtt Nom Wr [Auto] Off
Rtt Nom Rd [Auto] Off
Rtt Wr [Auto] RZQ/6 (40)
Rtt Park [Auto] RZQ/5 (48)
Rtt Park Dqs [Auto] RZQ/6 (40)


Gruß Enrico

Hallo!

Kurze Frage:

Würdet ihr eur ASUS ROG Strix X670E-E/-F/-A/-I Gaming WIFI Board nochmals kaufen - Seid ihr damit zufrieden?

Ich habe eigentlich nichts zu meckern. Läuft alles wie es soll.

Habe das ASUS ROG Strix X670E-E Einstellmöglichkeiten ohne Ende!
Ich kann nichts schlechtes da rüber sagen und bin erstmal zufrieden.
Bin auch noch am Anfang bei Spielen. :-)

Gruß Enrico

Hardwareluxx setzt keine externen Werbe- und Tracking-Cookies ein. Auf unserer Webseite finden Sie nur noch Cookies nach berechtigtem Interesse (Art. 6 Abs. 1 Satz 1 lit. f DSGVO) oder eigene funktionelle Cookies. Durch die Nutzung unserer Webseite erklären Sie sich damit einverstanden, dass wir diese Cookies setzen. Mehr Informationen und Möglichkeiten zur Einstellung unserer Cookies finden Sie in unserer Datenschutzerklärung.


Zurück
Oben Unten refresh
