Sammelthread für die ASUS ROG Strix X670E Gaming WIFI Serie
In dem Thread geht es nur um die Strix x670E Serie. Andere Board Fragen haben hier nichts verloren, danke.




Herstellerseite: STRIX X670E-E / STRIX X670E-F / STRIX X670E-A / STRIX X670E-I

Support/Treiber/Bios (Hersteller): STRIX X670E-E / STRIX X670E-F / STRIX X670E-A / STRIX X670E-I

Support/Treiber/Bios (Alternative): STRIX X670E-E / STRIX X670E-F / STRIX X670E-A


Geizhals: STRIX X670E-E / STRIX X670E-F / STRIX X670E-A /
STRIX X670E-I

Geizhals Vergleich: Strix X670E-E/F/A/I

Bios Übersicht: AM5 AGESA/UEFI/BIOS Info & Laberthread

AM5 Laberthread: https://www.hardwareluxx.de/community/threads/amd-am5-lga1718-mainboard-info-laberthread.1311067/

ECO Mode Guide: https://www.overclock3d.net/reviews/cpu_mainboard/amd_eco_mode_guide_for_am5/1


Reviews:

Besonderheiten:
  • Optimiertes Kühlungsdesign: Massive VRM-Kühlkörper plus integrierte Aluminium-E/A-Abdeckung, hochleitfähiges Wärmeleitpad, L-förmige Heatpipe, M.2 Combo-Kühlkörper und M.2 Backplate für den PCIe® 5.0 M.2_1 Steckplatz, drei Onboard-M.2-Kühlkörper sowie ein massiver M.2-Kühlkörper als Zubehör
  • Übertaktungstechnologien: Dynamic OC Switcher, Ryzen Core Flex, Asynchroner Takt und PBO-Verbesserung
  • Hochleistungsnetzwerke: Onboard WiFi 6E, Intel® 2,5 Gb Ethernet und ASUS LANGuard
  • Branchenführendes Audio: ROG SupremeFX ALC4080 mit Savitech SV3H712 Verstärker, zusammen mit DTS® Sound Unbound und Sonic Studio III
  • Unübertroffene Personalisierung: ASUS-exklusive Aura Sync RGB-Beleuchtung, einschließlich eines RGB-Headers und drei adressierbaren Gen 2 RGB-Headern
  • DIY-freundliches Design: Einschalttaste, vormontiertes I/O Shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-Code, Q-LED, BIOS FlashBack™, Clr CMOS Button, FlexKey, SafeSlot und SafeDIMM
  • Intelligente Steuerung: ASUS-exklusive Tools wie AI Cooling II, Two-Way AI Noise-Cancelation und AI Networking für eine einfache Konfiguration
  • Renommierte Software: 60-Tage-Testversion von AIDA64 Extreme und intuitives UEFI BIOS-Dashboard im Lieferumfang enthalten

Spezifikationen ROG STRIX X670E-E GAMING WIFI:

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed),
and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function

Graphics​

1 x DisplayPort**
1 x HDMI® port***
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
AMD X670 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))

AMD X670 Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.
**The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications

USB​

Rear USB (Total 13 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x
USB Type-C®)

Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4080
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the
front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB
Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Alteration Mode Switch
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Massive M.2 Heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 MbFlash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Massive M.2 Heatsink
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG Graphics card holder
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
Documentation
1 x User guide

Operating System​

Windows® 11 64-bit, Windows 10 64-bit

Form Factor​

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-F GAMING WIFI:

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function

Graphics​

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports max. 4K@60Hz as specified in HDMI 2.1.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD X670 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries.

USB​

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®)
2 x USB 2.0 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C®)
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
Documentation
1 x User guide

Operating System​

Windows® 10 64-bit, Windows® 11 64-bit

Form Factor​

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-A GAMING WIFI:

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics​

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0/4.0/3.0 x16 slot

AMD X670 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB​

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional
2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch packages for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate

Documentation
1 x User guide

Operating System​

Windows® 11, Windows® 10 64-bit

Form Factor​

ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-I GAMING WIFI:

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics​

1 x HDMI® port*
2 x USB4® ports support USB Type-C® display
outputs**
*Supports 4K@60Hz as specified in HDMI
2.1.
** VGA resolution support depends on
processors' or graphic cards' resolution.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot(s)

Storage​

Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.

USB​

Rear USB (Total 10 ports)
2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 xUSB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II C (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**

Audio​

ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port & USB Type-C® port with indepent power solution
- Dedicated audio PCB layers
*All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE

Back Panel I/O Ports​

2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1
port supports ROG STRIX HIVE)
3 x USB 2.0 port(s) (3 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2 connector (support(s) USB
Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x RTC Battery header
1 x Thermal Sensor header
1 x 2 pin Power_BTN header
2 x USB Type-C® connectors to Install ROG
FPS-II card*
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports

Special Features​

Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
- M.2 Chipset Fan
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x EZ mode PBO button
1 x FlexKey button
1 x BIOS FlashBack™ button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide

Operating System​

Windows® 11, Windows® 10 64-bit

Form Factor​

Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)

FAQ:

Q: Wie Windows 11 22H2 installieren wenn LAN nicht erkannt wird?
A: Siehe Lösung von Asus.

Q: Im Geräte-Manger ist ein unbekanntes Gerät?
A: es handelt sich um den "Thunderbolt" (AMD I2C). Treiber

Q: Kann man das Memory Training abschalten?
A: ja in dem man in BIOS "Context Restore" auf enable stellt. Wichtig bei Context Restore, erst einschalten wenn das Ram Training 1x gemacht wurde

Tipps:
Empfohlene zusatzeinstellungen für RAM ab 6000Mhz:
1x Ram Training machen lassen, danach Context Restore aktivieren und Memory Power Down (wird automatisch aktiviert ab Bios 1004). Medium Load Boostit sollte man auch aktivieren was die Stabilität erhöht.


Sollten Änderungen oder Ergänzungen gewünscht sein bitte Informiert mich.


Anhänge

  • Strix-A.jpg
    88,9 KB · Aufrufe: 539
  • Strix-E.jpg
    28,7 KB · Aufrufe: 465
  • Strix-F.jpg
    135,8 KB · Aufrufe: 386
  • Strix-A.png
    128,7 KB · Aufrufe: 328
  • Strix-E.png
    149,1 KB · Aufrufe: 267
  • Strix-F.png
    124,8 KB · Aufrufe: 274
  • Screenshot 2022-11-07 092727.png
    Screenshot 2022-11-07 092727.png
    152,3 KB · Aufrufe: 238
  • Screenshot 2022-11-07 095054.png
    Screenshot 2022-11-07 095054.png
    83,4 KB · Aufrufe: 220
  • Neues Bild.png
    Neues Bild.png
    511,8 KB · Aufrufe: 512
Zuletzt bearbeitet:
Glaube es liegt eher am board als am ram oder?
Das wird sich dann heraus stellen .
Hab schon die seltsamsten Sachen mit Speicher erlebt .
Ich hab gerade das Glück gehabt das mein Bruder sich schon Speicher gekauft hat da wusste ich dann auch gleich das der Corsair RAM schuld war an den System Neustarts weil ich gegen testen konnte.
Gruß.
Wann hast du die Komponenten gekauft?
Zur Not könnte man auch beides zurück schicken und nen Neustart machen.
In der Rückgabe Zeit ist das alles noch einfach .
Ich weiß ist doof aber was du da beschreibst steht unter keinem guten Stern.

Zuletzt bearbeitet:
Wenn Du diese Anzeige nicht sehen willst, registriere Dich und/oder logge Dich ein.
Non X CPU ist die gleiche CPU Genaration wie die X Varianten, nur mit weniger Takt. Beide nutzen den gleichen Microcode. Boot und Funktion ist also gegeben. Vielleicht wird nur der Name nicht richtig angezeigt aber selbst das bezweifle ich.


Wie lange hast du denn beim Booten gewartet? Der erste Boot kann durchaus ein paar Minuten dauern. Ansonsten RAM auch schon einzeln in A2 und/oder B2 probiert?
Alles probiert, über 5min gewartet. Ram ist extra für das Board freigegeben. Was ist am besten, erst ram oder board tauschen? Oder könnte es doch die cpu sein...

Alles probiert, über 5min gewartet. Ram ist extra für das Board freigegeben. Was ist am besten, erst ram oder board tauschen? Oder könnte es doch die cpu sein...
Der RAM könnte auch eine Macke haben .
CPU ist auch möglich aber auch das Board.
Da hilft nur Ausschluss verfahren .
Am einfachsten ist der RAM.
Was auch sein könnte krummer Kontakt im CPU Sockel .

Mal ein bisschen Feedback über das
STRIX E-A da ich leider Probleme in Form von Systemneustart und Freezes gehabt habe mit dem Corsair RAM mit
CL 30 ,36,36,76

Hab ich mir den GSkill mit 30,38,38,96 6000 geholt der lâuft zur Zeit absolut Top auf dem Board mit dem EXPO 2 .
Von meinem Bruder hatte ich auch den 36,36,36,96 6000 G-Skill drauf mit Samsung Chips lief auch sauber mit Expo 2.

Bisher hab ich keine weiteren Probleme mit dem Board fest stellen können.
Bin sehr zufrieden bis her.
hi hast du gewisse einstellungen gemacht beim motherboard?

ich habe aktuell die hier drinnen

G.SKILL Trident Z5 NEO RGB Series (AMD Expo) 64GB (2 x 32GB) 288-pin SDRAM DDR5 6000 CL32-38-38-96 1,40V Dual Channel Desktop Memory F5-6000J3238G32GX2-TZ5NR (Mattschwarz)

und bin jetzt beim überlegen die hier zu nehmen

G.Skill Trident Z5 NEO RGB Series 32GB (2X 16GB) 288-Pin SDRAM DDR5 6000 (PC5-48000) CL32-38-38-96 1,35V Dual Channel Desktop Arbeitsspeicher Modell F5-6000J3238F1 6GX2-TZ. 5NR (Mattschwarz)


macht es einen sinn?

@lalilu
Ich habe SATA ,IGPU ,WiFi deaktiviert so wie dieses Asus dingens Armour blablabla und das gleich zu Beginn beim ersten Boot ins BIOS weil ich es nicht brauche.
Und ich auch nix von einer laufenden Kombi aus AMD und NV halte ...das allein kann schon irgendwie nicht gut gehen ...:fresse:meiner Meinung nach.

Sonst nur das EXPO 2 geladen vom GSkill den Scoty verlinkt hat .

Wen deine 64 GB laufen lass sie drinn wirst dir ja was gedacht haben!

Ansonsten scheinen hier einige gut mit den 2*16 GB CL,30,38,38,96 G-skills zu fahren

Zuletzt bearbeitet:
Ich habe meinen 7700x ja im Bios auf 65w begrenzt, laut hwinfo ist die Gesamtleistung bei 90w ohne das ich groß was mache. PPT sollte daher eigentlich nie über 65 gehen, liehgt aber bei fast 90 nur warum? Bios ist das letzte Beta 09xx drauf.


Der RAM könnte auch eine Macke haben .
CPU ist auch möglich aber auch das Board.
Da hilft nur Ausschluss verfahren .
Am einfachsten ist der RAM.
Was auch sein könnte krummer Kontakt im CPU Sockel .
Meinst du beide Ramriegel sind kaputt? Cpu nehme ich später runter, aber wenn alles gut aussieht, weiss ich nicht ob board oder ram tauschen. Glaub nicht das beide Riegel kaputt sind, aber vielleicht trotzdem nicht unterstützt.

Cpu vorher runtergenommen, 4 Pins sind verbogen, wird wohl das sein....

Zuletzt bearbeitet:
Zuletzt bearbeitet:

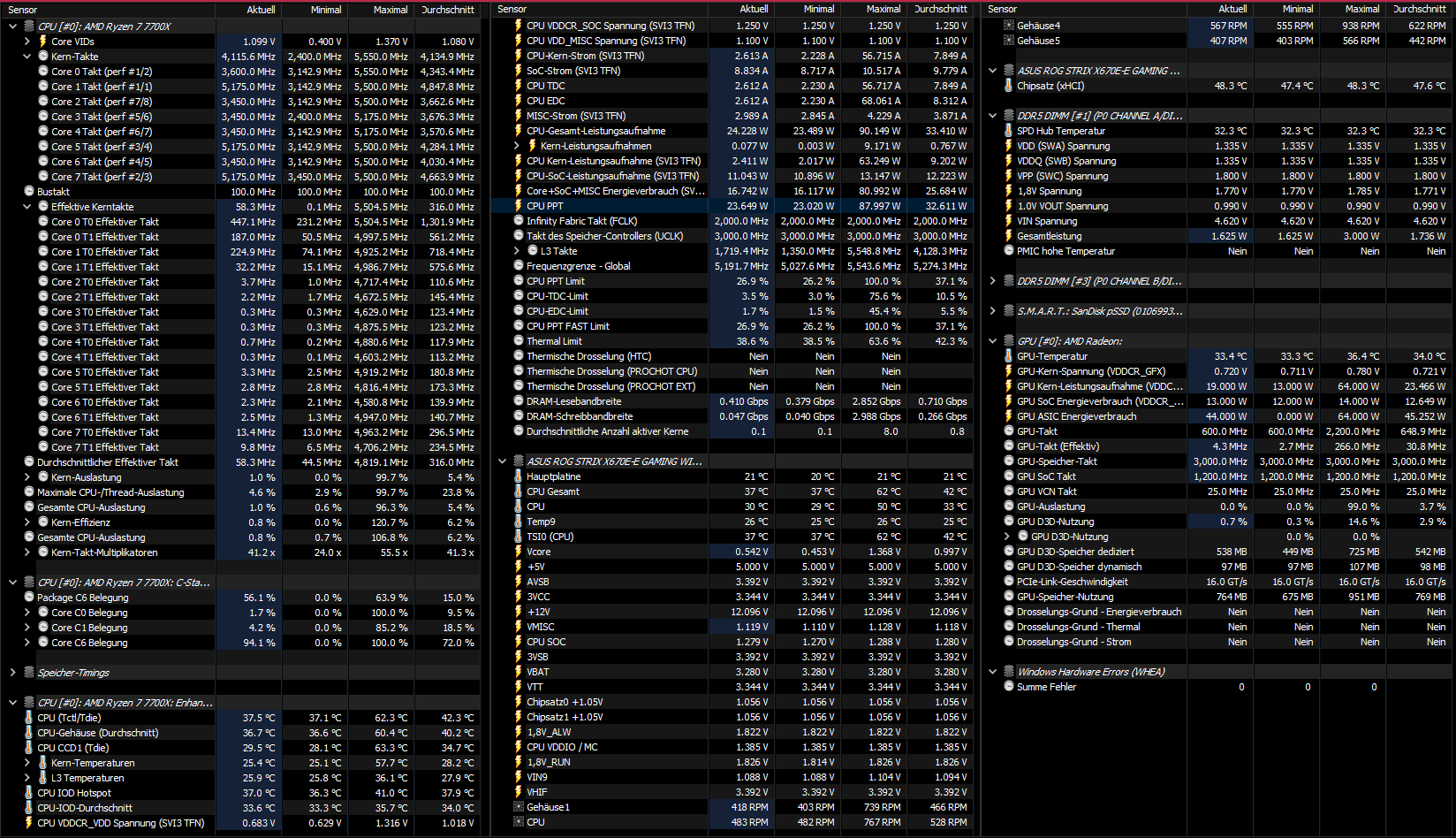

Ich habe meinen 7700x ja im Bios auf 65w begrenzt, laut hwinfo ist die Gesamtleistung bei 90w ohne das ich groß was mache. PPT sollte daher eigentlich nie über 65 gehen, liehgt aber bei fast 90 nur warum? Bios ist das letzte Beta 09xx drauf.

Anhang anzeigen 848575

grüss dich
du ich habe das rog strix x670e-a gaming wifi aber ich finde nur das 08.05 bios
liegt es vielleicht bei mir an die ram riegeln wegen die 1.40v? die anderen sind mit 1,35v
die habe ich aktuell drinnen

G.SKILL Trident Z5 NEO RGB Series (AMD Expo) 64GB (2 x 32GB) 288-pin SDRAM DDR5 6000 CL32-38-38-96 1,40V Dual Channel Desktop Memory F5-6000J3238G32GX2-TZ5NR (Mattschwarz)
soll ich die mal versuchen

G.Skill Trident Z5 NEO RGB Series 32GB (2X 16GB) 288-Pin SDRAM DDR5 6000 (PC5-48000) CL32-38-38-96 1,35V Dual Channel Desktop Arbeitsspeicher Modell F5-6000J3238F1 6GX2-TZ. 5NR (Mattschwarz)



was sagt ihr dazu?
danke

wollt euch nur kurz informieren

aktuell sind

G.Skill Trident Z5 NEO RGB Series 32GB (2X 16GB) 288-Pin SDRAM DDR5 6000 (PC5-48000) CL32-38-38-96 1,35V Dual Channel Desktop Arbeitsspeicher Modell F5-6000J3238F1 6GX2-TZ. 5NR (Mattschwarz)​


verbaut und die laufen ohne probleme , habe jetzt noch weitere 2 stück bestellt und dann schauen wir weiter :-)

1. Kriegt hier jemand seinen RAM mit 6400 Mhz auf dem Board zum laufen? Ich habe das X670E-A mit einem 7600X (ECO Mode 65W TDP, iGPU deaktiviert.
Weder mit den beiden DOCP Profilen, noch mit austesten von diversen Spannungen läuft es in Games stabil.
Ich benutze folgenden RAM:

G.Skill Trident Z5 RGB silber DIMM Kit 32GB, DDR5-6400, CL32-39-39-102, on-die ECC​


Hab den RAM aktuell auf 6000 Mhz laufen (ansonsten sind die weiteren Settings aus DOCP 1 geladen). Aber ich würde mir die fehlenden 400 Mhz gern noch rauskitzeln.


2. Nutzt hier jemand HWMonitor und bekommt dort die Drehzahlen seiner Lüfter (welche am Mainboard angeschlossen sind) und die Temperaturen der verschiedenen Mainboardsensoren angezeigt? Das fehlt bei mir komplett. Die Version von HWMonitor ist die aktuellste.

1. Kriegt hier jemand seinen RAM mit 6400 Mhz auf dem Board zum laufen?
DDR5-6400 per XMP werden bei kaum einen laufen. DDR5-6000/6200 sind schon realistischer. Für 6400 braucht es in der Regel komplett manuelle Einstellungen. Das Problem ist hier nicht der RAM, sondern eher das DRAM Training des Mainboards.

2. Nutzt hier jemand HWMonitor und bekommt dort die Drehzahlen seiner Lüfter (welche am Mainboard angeschlossen sind) und die Temperaturen der verschiedenen Mainboardsensoren angezeigt?
Vergiss HWMonitor, nimm HWInfo64 (wie alle anderen auch).

[...]

Vergiss HWMonitor, nimm HWInfo64 (wie alle anderen auch).

Ich habe zwar nicht nach diesem Hinweis gesucht...ihn aber gefunden UND ER IST GOLD WERT! :) Lieben Dank.

Ich war schon am Verweifeln mit HWMonitor (oder irgendeiner anderen Software) mein ASUS mit X670E Chipsatz auszulesen. Keiner kriegt's hin, außer HWInfo64. Der zeigt mir endlich alle Temperatursensoren wie im UEFI, so dass ich eine baseline für meine Lüfterkurven etablieren kann. ^^ Der kann sogar den reellen effektiven Takt der Ryzen 7000 auslesen, beeindruckend.

Denke ich werde mir da auch eine Lizenz zu kaufen, das sieht enorm informativ aus.

Verwe
wollt euch nur kurz informieren

aktuell sind

G.Skill Trident Z5 NEO RGB Series 32GB (2X 16GB) 288-Pin SDRAM DDR5 6000 (PC5-48000) CL32-38-38-96 1,35V Dual Channel Desktop Arbeitsspeicher Modell F5-6000J3238F1 6GX2-TZ. 5NR (Mattschwarz)​


verbaut und die laufen ohne probleme , habe jetzt noch weitere 2 stück bestellt und dann schauen wir weiter :-)
Verwende auf meinem ASUS B650E-F Strix Mainboard mit Ryzen 9750x auch diesen Ram. Funktioniert mit dem aktuellstem BIOS super zuverlässig. Mit dem auf dem MB installierten BIOS (erste BIOS Version vom September mit AGESA PI 1002) war ein Booten nicht einmal mit einem RAM Riegel möglich was mir einen kurzen Schockmoment bereitet hat.

Mit der aktuellen BIOS Version vom November (AGESA version AM5PI 1.0.0.3 patch A + D) funktioniert der RAM super zuverlässig mit voller Geschwindigkeit und Timings entsprechend G-Skill. Verwende das EXPO 2 Profil. Bei meinem Board sind die EXPO 1 und 2 Einstellungen vollkommen identisch. Vermute, dass der RAM auch auf dem ASUS ROG Strix 670E super laufen wird - aktuelles BIOS vorrausgesetzt. Bin mit dem RAM super zufrieden. RGB etc. benötige ich nicht.

l. G.
Karl

Zuletzt bearbeitet:
Jo. Habe die auch als RGB Version. Laufen Super auf EXPO 2.

Zuletzt bearbeitet:
@Scoty auf der Asus seite für das e board ist der nicht mehr..? xD

Doch ist er.

Gestern wo ich das geschrieben habe war der aktuellste noch aus 2022 XD

Kann mir wer sagen wo ich den Gear Down Mode finde ?
Schon alles durch gesucht im Bios finde es nicht!

Zuletzt bearbeitet:
ASUS scheint da ja eh etwas konservativ zu sein (was ich durchaus gut finde). Keine Schnellschüsse mit irgendwelchen neuen UEFI Versionen o.ä.

Auf der Seite meines Mainboards, ASUS TUF GAMING X670E-Plus ist auch noch alles beim alten, d.h. Stand Ende 2022. :d

Aber solange alles funktioniert...ich würde auch eher nie einfach den neuesten Chipsatz-Treiber direkt von AMD laden oder den Audio-Treiber von Realtek suchen. Wer kann schon sagen, was die Mainboardhersteller da noch immer spezifisch anpassen.

Hat eigentlich schonmal jemand das Problem gehabt dass das Bios total langsam ist und kaum reagiert?

Was ist ein GDM Bios?

GDM ist eine Option im Bios.

Zu finden unter

Extreme Tweaker/DRAM Timing Control

oder

Advanced/AMD CBS/DDR4 Common Options/DRAM Controller Configuration

GDM ist eine Option im Bios.

Zu finden unter

Extreme Tweaker/DRAM Timing Control

oder

Advanced/AMD CBS/DDR4 Common Options/DRAM Controller Configuration
Ja unter RAM Timming Control finde ich nur Power Down .
GDM find ich da nicht .
Im Netz sieht man das das manche deaktivieren können .
Beim Strix E-A finde ich die Option nicht!

Hab zwar gestern auch in dem AMD Pfad gesucht aber schau da noch Mal nach.
Beitrag automatisch zusammengeführt:

Was ist ein GDM Bios?
Gear Down Mode!
Ist ein Regler im BIOS.

Zuletzt bearbeitet:
Motherboard: Asus Rog Strix X670E-A
CPU: Ryzen 7 7700X
RAM: 2x32GB G.Skill Trident Z5 (6000er)
SSD: 4x NVMe
- 2x980pro (PCIe 4x4)
- 1x990pro (PCIe 4x4)
- 1x970evo (PCIe 3x4)
Habe von einem AM4 System migriert, aber seit dem 1. Boot läuft das System mega langsam. Gerade beim Öffnen von Programmen oder auch nur der Browser oder Dateimanager ist spürbar langsamer als mit dem AM4. Zumindest bei den NVMe´s ist dies messbar, die 980iger Boot hat LESEN ca 3000MB/s & SCHREIBEN 2500MB/s. Die 990iger ist sogar noch langsamer (zumindest im Samsung Magician), im AS SSD sind die beiden fast gleich.

Jemand eine Idee?

Achso, habe Windows NICHT neu installiert...was mir noch als mögliche Ursache in den Sinn kam.



UPDATE: hab mal die 970iger raus genommen...


Danke!

Zuletzt bearbeitet:
Hardwareluxx setzt keine externen Werbe- und Tracking-Cookies ein. Auf unserer Webseite finden Sie nur noch Cookies nach berechtigtem Interesse (Art. 6 Abs. 1 Satz 1 lit. f DSGVO) oder eigene funktionelle Cookies. Durch die Nutzung unserer Webseite erklären Sie sich damit einverstanden, dass wir diese Cookies setzen. Mehr Informationen und Möglichkeiten zur Einstellung unserer Cookies finden Sie in unserer Datenschutzerklärung.


Zurück
Oben Unten refresh
