RightMark Audio Analyzer test report
| Testing device | Deviltech Fragbook DTX |
| Sampling mode | 16-bit, 44 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -2.4 dB / -2.1 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.32, -4.53 |
Poor |
| Noise level, dB (A) | -83.6 |
Good |
| Dynamic range, dB (A) | 83.8 |
Good |
| THD, % | 0.0080 |
Very good |
| THD + Noise, dB (A) | -75.9 |
Average |
| IMD + Noise, % | 0.842 |
Poor |
| Stereo crosstalk, dB | -81.8 |
Very good |
| IMD at 10 kHz, % | 0.019 |
Very good |
| General performance | Good |
Frequency response
| From 20 Hz to 20 kHz, dB | -9.25, +0.32 |
| From 40 Hz to 15 kHz, dB | -4.53, +0.32 |

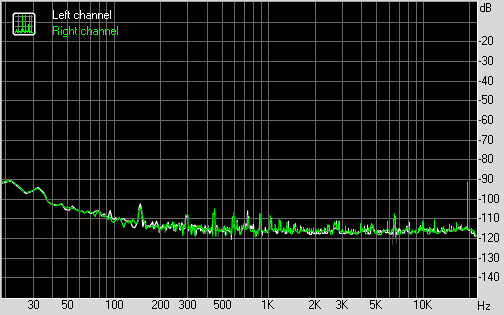

Noise level
Left |
Right |
|
| RMS power, dB | -80.9 |
-80.6 |
| RMS power (A-weighted), dB | -83.7 |
-83.5 |
| Peak level, dB FS | -53.2 |
-53.0 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +81.7 |
+81.4 |
| Dynamic range (A-weighted), dB | +84.0 |
+83.7 |
| DC offset, % | -0.00 |
-0.00 |

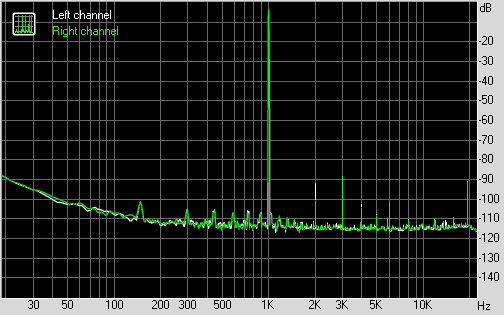

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0084 |
+0.0076 |
| THD + Noise, % | +0.0189 |
+0.0181 |
| THD + Noise (A-weighted), % | +0.0163 |
+0.0157 |

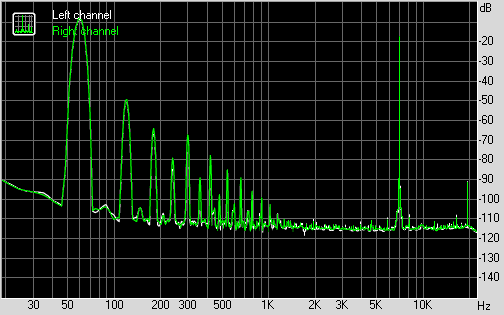

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.8393 |
+0.8453 |
| IMD + Noise (A-weighted), % | +0.1620 |
+0.1657 |

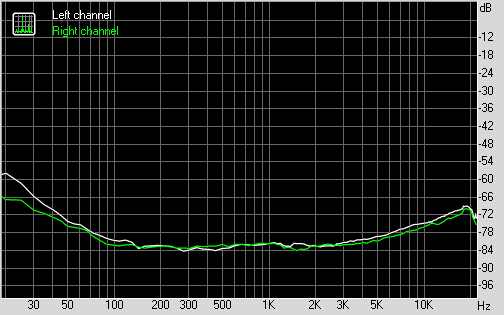

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -80 |
-81 |
| Crosstalk at 1000 Hz, dB | -81 |
-81 |
| Crosstalk at 10000 Hz, dB | -74 |
-75 |

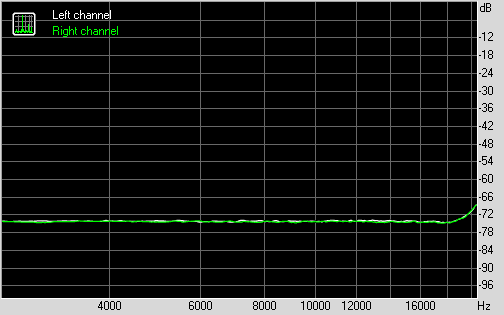

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0199 |
0.0190 |
| IMD + Noise at 10000 Hz, | 0.0195 |
0.0193 |
| IMD + Noise at 15000 Hz, | 0.0200 |
0.0186 |
