RightMark Audio Analyzer test report
| Testing device | Lautsprecher (Auzen X-Meridian 7.1 2G) |
| Sampling mode | 24-bit, 96 kHz |
| Interface | DirectSound |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.6 dB / -0.6 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.06, -0.16 |
Very good |
| Noise level, dB (A) | -106.3 |
Excellent |
| Dynamic range, dB (A) | 102.3 |
Excellent |
| THD, % | 0.0022 |
Excellent |
| THD + Noise, dB (A) | -69.4 |
Average |
| IMD + Noise, % | 0.040 |
Good |
| Stereo crosstalk, dB | -100.7 |
Excellent |
| IMD at 10 kHz, % | 0.033 |
Good |
| General performance | Very good |
Frequency response
/fr.png)
| From 20 Hz to 20 kHz, dB | -6.12, +0.06 |
| From 40 Hz to 15 kHz, dB | -0.16, +0.06 |

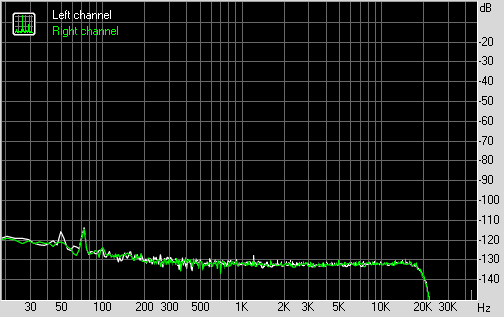

Noise level
/noise.png)
Left |
Right |
|
| RMS power, dB | -104.4 |
-104.3 |
| RMS power (A-weighted), dB | -106.2 |
-106.5 |
| Peak level, dB FS | -74.5 |
-74.6 |
| DC offset, % | -0.0 |
-0.0 |

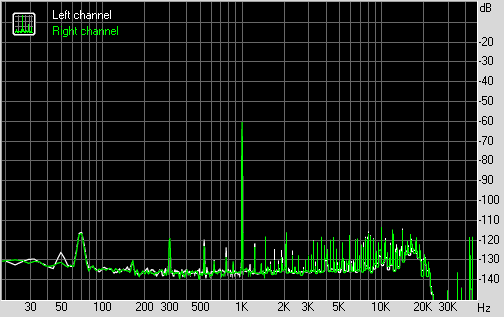

Dynamic range
/dynamics.png)
Left |
Right |
|
| Dynamic range, dB | +101.2 |
+101.3 |
| Dynamic range (A-weighted), dB | +102.2 |
+102.3 |
| DC offset, % | -0.00 |
-0.00 |

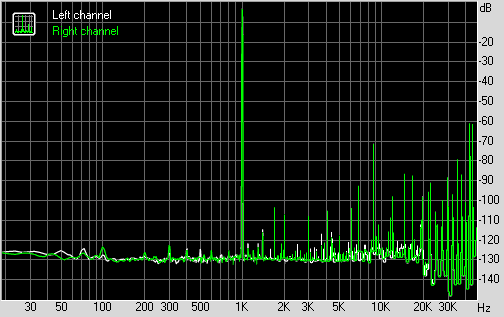

THD + Noise (at -3 dB FS)
/thd.png)
Left |
Right |
|
| THD, % | +0.0021 |
+0.0022 |
| THD + Noise, % | +0.0392 |
+0.0393 |
| THD + Noise (A-weighted), % | +0.0340 |
+0.0341 |

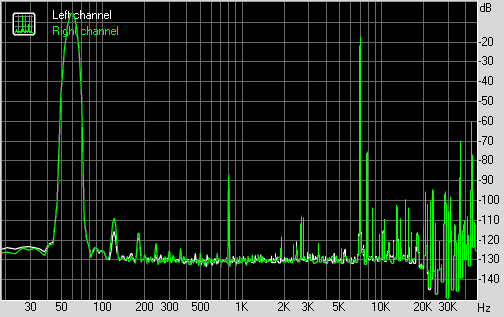

Intermodulation distortion
/imd.png)
Left |
Right |
|
| IMD + Noise, % | +0.0403 |
+0.0403 |
| IMD + Noise (A-weighted), % | +0.0381 |
+0.0381 |

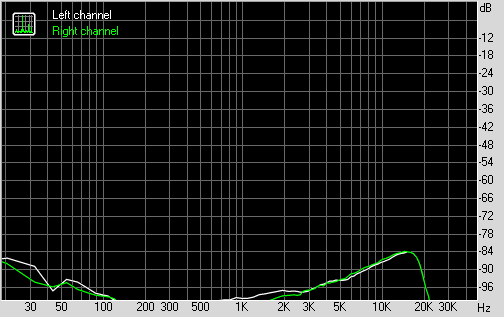

Stereo crosstalk
/cross.png)
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -97 |
-98 |
| Crosstalk at 1000 Hz, dB | -99 |
-101 |
| Crosstalk at 10000 Hz, dB | -86 |
-86 |

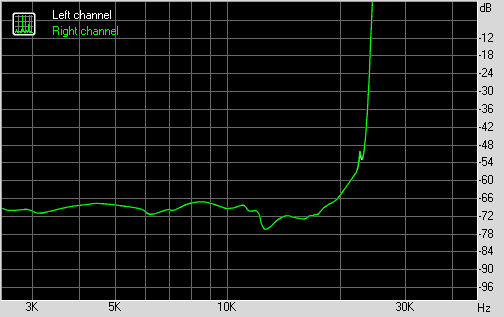

IMD (swept tones)
/imdswept.png)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0390 |
0.0391 |
| IMD + Noise at 10000 Hz, | 0.0342 |
0.0342 |
| IMD + Noise at 15000 Hz, | 0.0243 |
0.0243 |
