RightMark Audio Analyzer test report
| Testing device | Auzen X-Fi Hometheater |
| Sampling mode | 24-bit, 192 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.6 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.3 dB / -0.3 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.02, -0.15 |
Very good |
| Noise level, dB (A) | -100.0 |
Excellent |
| Dynamic range, dB (A) | 99.8 |
Excellent |
| THD, % | 0.0014 |
Excellent |
| THD + Noise, dB (A) | -91.4 |
Very good |
| IMD + Noise, % | 0.0031 |
Excellent |
| Stereo crosstalk, dB | -90.6 |
Excellent |
| IMD at 10 kHz, % | 0.0032 |
Excellent |
| General performance | Excellent |

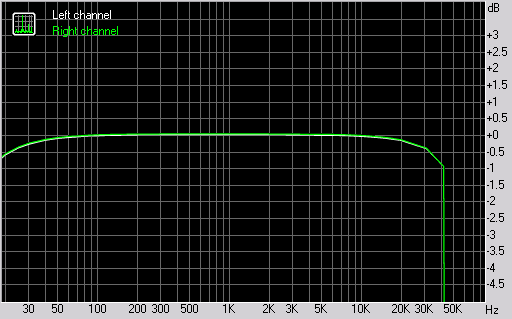

Frequency response
| From 20 Hz to 20 kHz, dB | -0.59, +0.02 |
| From 40 Hz to 15 kHz, dB | -0.15, +0.02 |

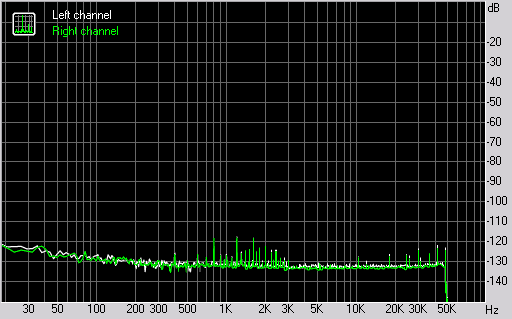

Noise level
Left |
Right |
|
| RMS power, dB | -98.7 |
-99.5 |
| RMS power (A-weighted), dB | -99.6 |
-100.3 |
| Peak level, dB FS | -80.3 |
-81.6 |
| DC offset, % | +0.0 |
+0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +98.5 |
+99.4 |
| Dynamic range (A-weighted), dB | +99.4 |
+100.1 |
| DC offset, % | -0.00 |
-0.00 |

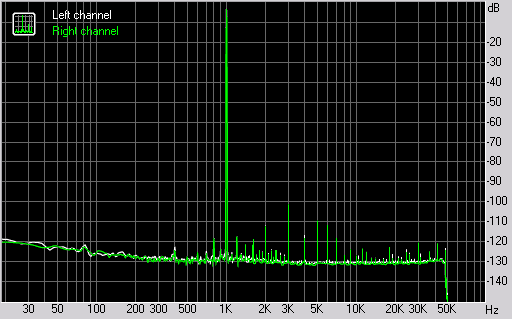

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0012 |
+0.0015 |
| THD + Noise, % | +0.0026 |
+0.0027 |
| THD + Noise (A-weighted), % | +0.0026 |
+0.0028 |

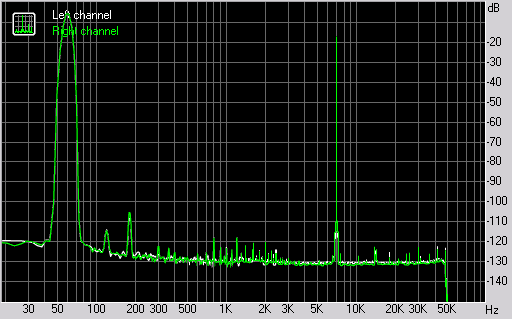

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0031 |
+0.0031 |
| IMD + Noise (A-weighted), % | +0.0028 |
+0.0027 |

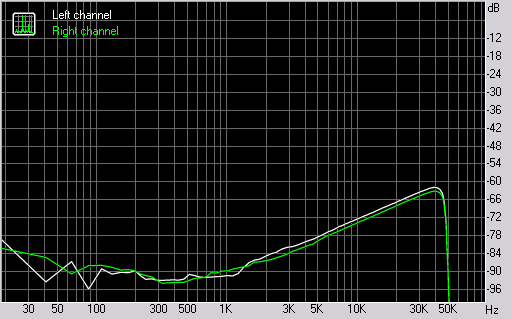

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -91 |
-87 |
| Crosstalk at 1000 Hz, dB | -90 |
-89 |
| Crosstalk at 10000 Hz, dB | -71 |
-73 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0034 |
0.0034 |
| IMD + Noise at 10000 Hz, | 0.0032 |
0.0031 |
| IMD + Noise at 15000 Hz, | 0.0033 |
0.0032 |
